Weighted Rope Bottom Border on Netting - Reference Examples of Custom Nets
Weighted Rope Bottom Edge Bordering on Netting Panels
5/16" Weighted-Rope Bottom Border installed on netting. This is a bordering type in which the bottom edge of the netting has a weighted-rope installed, and the remaining sides/top edges are rope bordered. Weighted-rope is laced through the meshes of the bottom edge, and then hand-sewn with periodic clove hitch knots to the net. This is a 5/16" Braided Nylon/Polypropylene rope with a segmented weight core. Weighs approximately 1 lb. per 10' lineal ft. and is useful to weigh the net down.
When installed on diamond mesh netting the remaining sides and top edges are 5/16" Braided Polyester Rope Bordered. Rope is laced through the edge meshes and then hand-sewn with periodic clove hitch knots to the perimeter of the net. This is a 5/16" Soft Braided 16-Strand 2x2 100% Polyester Rope, with a 2800 lb. breaking strength and less than 3% stretch at break. Hand-sewn to the netting with nylon twine.
When installed on square mesh netting the remaining sides and top edges are 5/16" Braided Polyester Rope Bordered, machine-sewn to the edges of the mesh. This is a 5/16" Soft Braided 16-Strand 2x2 100% Polyester Rope, with a 2800 lb. breaking strength and less than 3% stretch at break. Machine-sewn to the netting with polyester twine.
Below we present a series of reference images that help demonstrate this type of bordering on a selection of netting types. Not all netting options that we supply are shown, however a diverse range of twine thicknesses and mesh sizes are included to provide you with helpful context. Each image is captioned with the netting details, along with any pertinent notes that may apply - and there are some closeup photos as well.
Reference Images of Weighted-Rope Bottom Nets - Diamond Mesh & Square Mesh

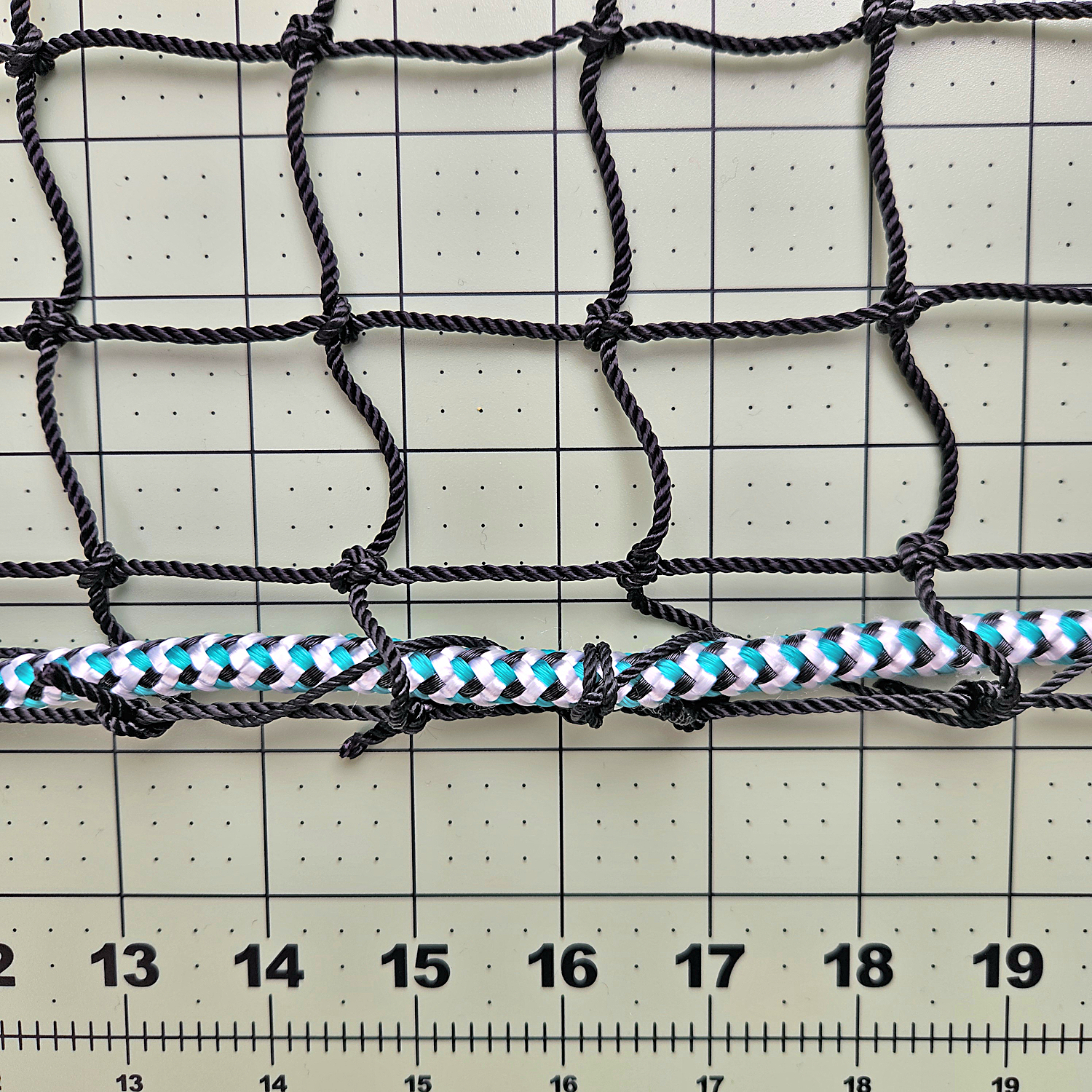

#36 X 1-3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
#21 X 3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
#36 X 1-3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
210D/80 X 1" Braided-Knotless Nylon Netting, Square Mesh Pattern
#72 X 1-3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
#21 X 3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
#21 X 3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
#21 X 3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
#21 X 3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
#36 X 1-3/4" Twisted-Knotted Nylon Netting, Square Mesh Pattern
#72 X 1-3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
#36 X 1-3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
#72 X 1-3/4" Twisted-Knotted Nylon Netting, Diamond Mesh Pattern
